NSSC LED Lights
These LED Spot and Flood lights are one of the toughest lights out there. The housing
is very robust, a solid aluminium die cast, with stainless steel screws. All the
lights above 10W have a metal gland where the cable enters the housing, and not
a rubber grommet, which is not really water proof and has no strain relief.
The price for these high quality LED lights is very good, it should actually be
much higher when compared with other lights prices and their quality.
The following videos show tests done on these lights.
Video 1
Video 2
Also see
this presentation
, of why to choose NSSC compared to others.
|
|
Item No.
|
Description
|
|
|
|
NS-RD-35WF-2
|
35W LED (7X5W) FLOOD LIGHT ROUND, SET (2 with cable lumen)
|
More Info
|
|
|
|
Description:
|
35W LED (7X5W) FLOOD LIGHT ROUND, SET (2 with cable lumen)
|
|
More Info:
|
More
Info
|
|
Specifications
9-32V, 7*5W CREE led,
4.3"
Flood,
Raw lumen: 5000 lm
Aluminum casting
Clear Optics PC lens
Operation Temp: -40°C+150°C
IP 68
packaging included: Led light *2+bracket+plug and play relay harness
Black shape
|
|
|
|
NS-RD-35WS-2
|
35W LED (7X5W) SPOT LIGHT ROUND, SET (2 with cable lumen)
|
More Info
|
|
|
|
Description:
|
35W LED (7X5W) SPOT LIGHT ROUND, SET (2 with cable lumen)
|
|
More Info:
|
More
Info
|
|
Specifications
9-32V, 7*5W CREE led,
4.3"
Spot
Raw lumen: 5000 lm
Aluminum casting
Clear Optics PC lens
Operation Temp: -40°C+150°C
IP 68
packaging included: Led light *2+bracket+plug and play relay harness
Black shape
|
|
|
|
NS-RD-50W-F-2
|
50W LED (5X10W) FLOOD LIGHT ROUND, SET (2 with cable lumen)
|
More Info
|
|
|
|
Description:
|
50W LED (5X10W) FLOOD LIGHT ROUND, SET (2 with cable lumen)
|
|
More Info:
|
More
Info
|
|
Specifications
Flood beam lumen:4800
colour temperature:6500k
about 50w power.
P68 waterproof
size:4.3inch
9-32V, 5*10W CREE led,
Flood, Spot optional
Aluminum casting
Clear Optics PC lens
Operation Temp: -40°C+150°C
Color shape: black
|
|
|
|
NS-RD-50W-S-2
|
50W LED (5X10W) SPOT LIGHT ROUND, SET (2 with cable lumen)
|
More Info
|
|
|
|
Description:
|
50W LED (5X10W) SPOT LIGHT ROUND, SET (2 with cable lumen)
|
|
More Info:
|
More
Info
|
|
Specifications
Spot beam lumen: 6900
colour temperature:6500k
about 50w power.
P68 waterproof
size:4.3inch
9-32V, 5*10W CREE led,
Flood, Spot optional
Aluminum casting
Clear Optics PC lens
Operation Temp: -40°C+150°C
Color shape: black
|
|
|
|

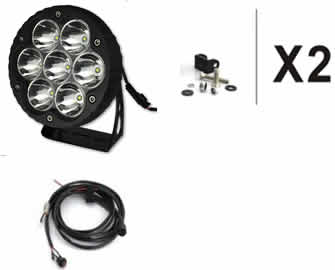

NS-RD-70WS-2
|
70W LED (7X10W) COMBO LIGHT ROUND, SET (2 with cable lumen)
|
More Info
|
|
|
|
Description:
|
70W LED (7X10W) COMBO LIGHT ROUND, SET (2 with cable lumen)
|
|
More Info:
|
More
Info
|
|
Specifications
9-32V, 7*10W CREE led,
Spot beam
Raw lumen: 11,000 lm
Aluminum casting
Clear Optics PC lens
Operation Temp: -40°C-150°C
IP 68
packaging included: LED light *1+bracket
Color: Black
|
|
|
|

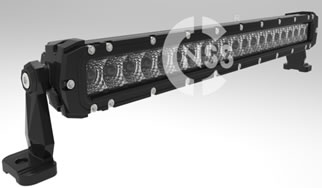

NS-WL-1R20C
|
100W LED COMBO LIGHT BAR (20X5W) 20”
|
More Info
|
|
|
|
Description:
|
100W LED COMBO LIGHT BAR (20X5W) 20”
|
|
More Info:
|
More
Info
|
|
Specifications
9-36V, 20*5W CREE led
Full 100W
Combo
Raw lumen: 11640 lm
6063 Aluminum extrusion
Length: 20inches
Operation Temp: -40°C+150°C
IP 68
Cast Alloy Leg Mount
black
|
|
|
|

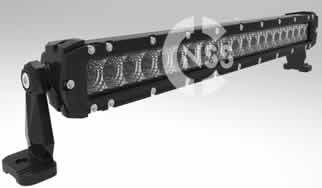

NS-WL-1R20S
|
100W LED SPOT LIGHT BAR (20X5W) 20”
|
More Info
|
|
|
|
Description:
|
100W LED SPOT LIGHT BAR (20X5W) 20”
|
|
More Info:
|
More
Info
|
|
Specifications
9-36V, 20*5W CREE led
Full 100W
spot
Raw lumen: 11640 lm
6063 Aluminum extrusion
Length: 20inches
Operation Temp: -40°C+150°C
IP 68
Cast Alloy Leg Mount
black
|
|
|
|
NS-WL-EX1
|
FEMALE DEUTSCH PLUG 1M
|
More Info
|
|
|
|
Description:
|
FEMALE DEUTSCH PLUG 1M
|
|
Specifications
This includes one connector to plug into a light with 1 meter cable. Great for adding an additional light to your existing wiring harness. Be sure to check your power draw when adding lights to a circuit as to not over power it.
|
|
|
|
NS-WL-MPZ10WF
|
10W LED FLOOD LIGHT PUZZLE TYPE
|
More Info
|
|
|
|
Description:
|
10W LED FLOOD LIGHT PUZZLE TYPE
|
|
More Info:
|
More
Info
|
|
Specifications
9-32V, 1*10W CREE led,
Flood beam
Raw lumen: 1250 lm
Aluminum casting
Clear Optics PC lens
Operation Temp: -40°C-150°C
IP 68
packaging included: Led light *1+bracket
Color: Black
|
|
|
|
NS-WL-MPZ10WS
|
10W LED SPOT LIGHT PUZZLE TYPE
|
More Info
|
|
|
|
Description:
|
10W LED SPOT LIGHT PUZZLE TYPE
|
|
More Info:
|
More
Info
|
|
Specifications
9-32V, 1*10W CREE led,
Spot beam
Raw lumen: 1250 lm
Aluminum casting
Clear Optics PC lens
Operation Temp: -40°C-150°C
IP 68
packaging included: Led light *1+bracket
Color: Black
|
|
|
|
NS-WL-R20/30
|
FEMALE AND MALE DEUTSCH PLUGS
|
More Info
|
|
|
|
Description:
|
FEMALE AND MALE DEUTSCH PLUGS
|
|
Specifications
Great to change existing cable with or without plugs going to e.g. a light, to a waterproof plugs system to never suffer from corrosion problems again, or to just quickly unplug appliances.
|
|
|
|
NS-WL-R20/30
|
WIRE LUMEN, RELAY HARNESS WITH SWITCH AND DEUTSCH PLUGS 2X 35W
|
More Info
|
|
|
|
Description:
|
WIRE LUMEN, RELAY HARNESS WITH SWITCH AND DEUTSCH PLUGS 2X 35W
|
|
Specifications
Relay harness for 1 led work lamp or 1 led light bar, with switch, up to 150W (13A at 12V)
|
|
|
|
NS-WL-RD2
|
WIRE LUMEN, RELAY HARNESS WITH SWITCH AND DEUTSCH PLUG 1X 150W
|
More Info
|
|
|
|
Description:
|
WIRE LUMEN, RELAY HARNESS WITH SWITCH AND DEUTSCH PLUG 1X 150W
|
|
Specifications
Relay harness for 2 lights with Deutsch plug up to 35W each, with switch, easy to install-plug n play.
|
|
The 20” 100W LED Bar is about 56cm wide and should fit all Bumpers in the middle.
The combo has got 4 outer LEDs on each side as a flood beam, this is why there is
less light going to the centre when compared to the Spot. These light bars have
a strong light, even to the sides, not like some others which have a very intensive
bright spot beam which can be very tiring on your eyes, especially when driving
on white gravel roads. These lights have a wide angle beam, this causes no loss
of sight of the road when going through a ditch. On gravel road these LEDs are good
for lighting up the entire field of view at normal speeds.
If you require a very strong spotlight, which shines really far, the 70W is the
one to go for. The 50W has a strong wide light angle and is good on gravel roads.
One to each side, and they are not so massive. The 35W and 50W lights should even
fit in most fog light spaces.
To mount these lights on your own is very easy, the cable lumen already contains
all you need. You only need to lay the lumen, maybe drill a hole in dashboard to
mount a switch and maybe drill holes to mount the lights. Then you loosen the battery
terminals and tighten again with cables in place.
For these lights we already manufactured dark canvas covers, to hide lights. As
per law it states that you may have 6 lights on. Probably 2 park lights, 2 main
lights and your 2 auxiliary lights. The rest you should cover up to prevent any
problems, and only use “off the road”. We wouldn't count each LED as a light, otherwise
no new vehicle with its day drive lights would be legal on the road!
The law states that no lights may be fitted further then 400mm from the side of
the car. No lights may be fitted higher then 1400mm from the ground, and no lower
than 350mm. A light shining to the front may not be mounted further then 500mm of
the vehicles front.
Make use of LEDs for off the Road applications, they provide lots of light power
for small power consumption, tough and reliable. That’s why they are called work
lights ;)
